Typical applications include:

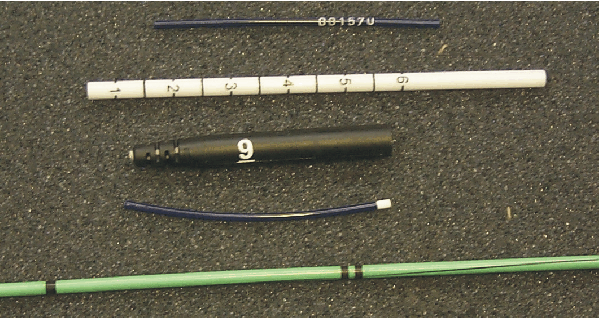

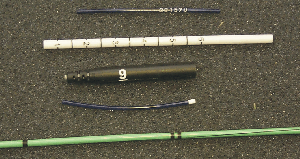

• Printing 360 degree Stripes on Catheters
• Printing Product Codes on Strain Reliefs
• Printing either Stripes or Words on Small diameter Plastic Parts or Tubing.

Printing can be achieved with 1 to 15 pounds of pressure. This "Light Touch" allows a greater range of printing on diameters from .020" to .200" without deforming the parts.

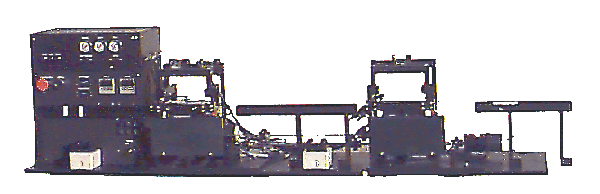

The Peripheral Marking System is truly a dry system. The system may be used with either hot stamping foil or heat transfer decals. There are no inks, thinners or chemicals used. All aluminum parts are hard, anodized black and all hardware is stainless steel. All materials contacting the printed part are either stainless steel, silicone rubber or delrin. The pneumatics are designed to run "dry" to eliminate the need for lubrication.

• Additional Print Heads
• Decal Indexer
• 220 vac 50/60 Hz
• Digital Pressure Gauges

• Power Input: 120 VAC 5 amp 50/60 Hz.
(Optional 220 VAC 2.5 amp 50/60 Hz.)
• Air Supply: 100 psig at 0.5 cfm
Clean Dry Air
• Dimensions: Height 20", Width 65", Depth 12"
• Weight 80 lbs
• Temperature Range 200 to 600 Degrees F. Digital Control with Solid State Relay
• Printing Pressure: 1 to 15 lbs.
• Printing Speed: 0001 to 9999 Digital Control
• Print Rap Distance: 0001 to 9999 Digital Control
