Hot Stamping Machine Control
Box Options |
| Heat Transfer Indexer Function |
The Heat Transfer Function uses a photocell and
stepper motor to index a heat transfer under the Hot Stamping Head
for printing. The machine operates as follows:
1. Operator loads part to be printed.
2. Operator press both palm buttons.
3. Hot Stamp Head moves down to the print position.
4. Hot Stamp head stays down for the Print Time. If Transfer
Back is set to more that .001 the transfer motor backs up.
5. Hot Stamp head starts it's move to the up position. If
head up delay is set, the Hot Stamp Head will stop after the
head up delay time for the Stop Time.
6. The transfer pull will wait the transfer delay time.

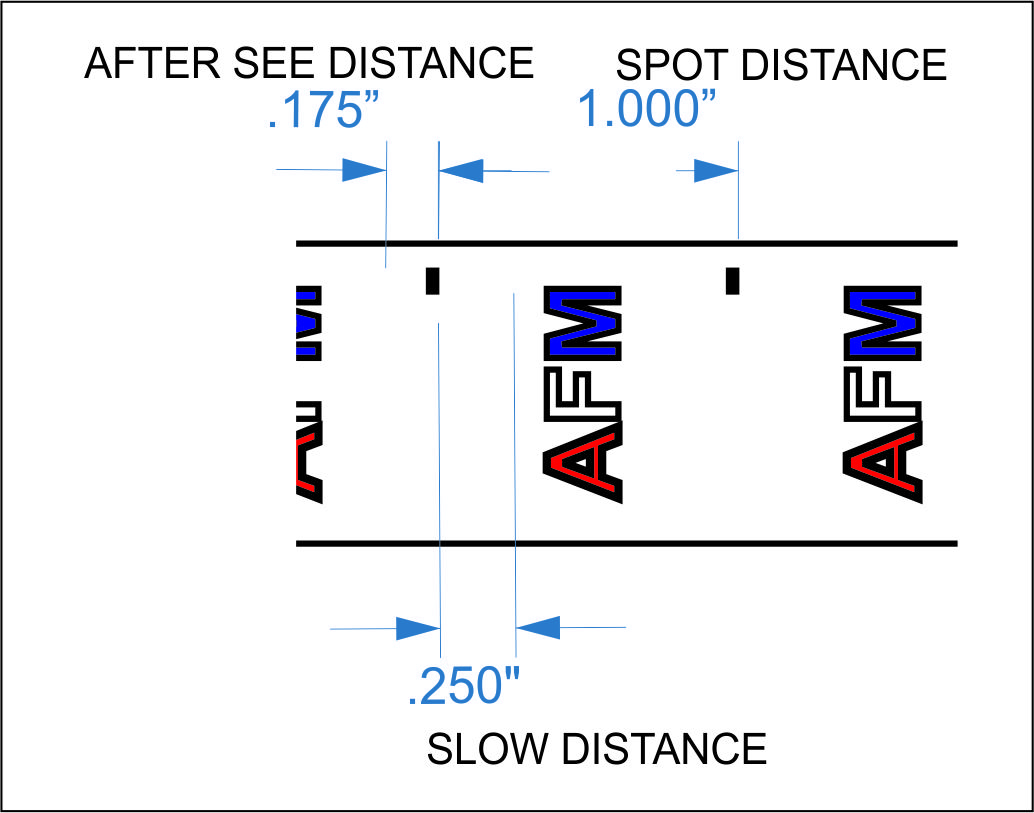

7. The transfer will pull at a fast motor speed for the spot distance
minus the slow distance. The photo cell does not read during this time.
8. The transfer will pull at the slow motor speed until the photo cell
sees the spot.
9. The transfer will continue to pull at the slow distance speed
for the after see distance.
The cycle is then complete.
|
|
|
|
