| Hot Stamping Machine |
| Foil Feed Systems 12"X18" 12"X24" |
| Foil Feed, 12"X18" 12"X24" No Drive |

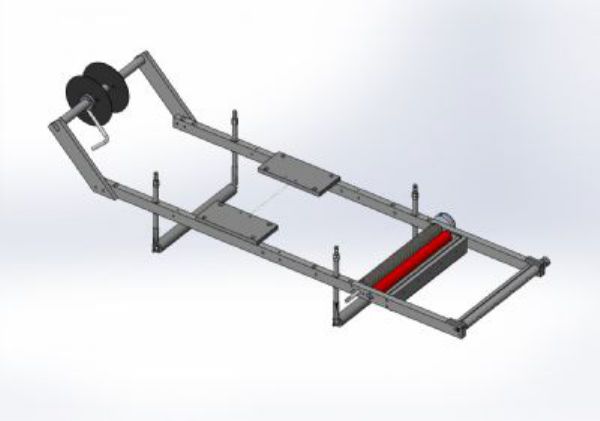

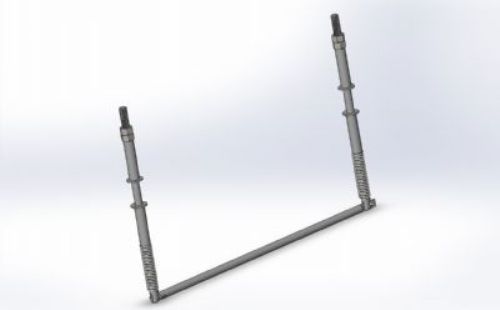

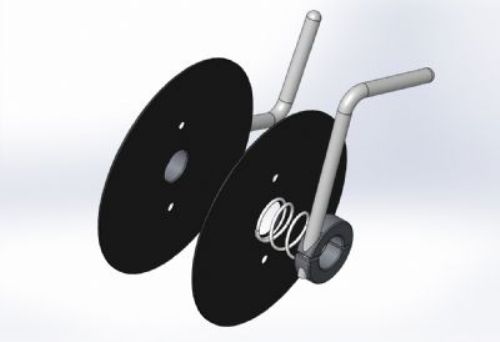

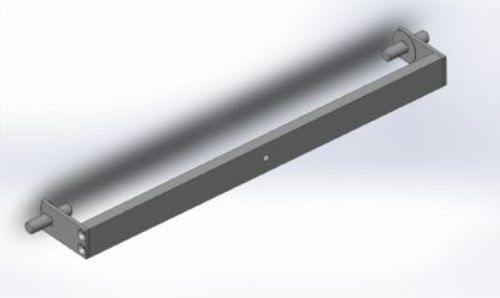

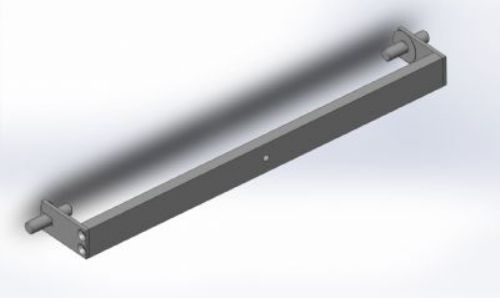

| AFM Part Number 104341 |
| Drawing Number 155400 |
 |
| View PDF |
|
| Qty | Description | Drawing Number | AFM Part# | Picture(s) | Drawing(s) | EDrawing(s) | Assembly | Spare | | 1 | Foil Feed, Knurled roller pin (drive side) Motor Drive | 15000-003 | 102953 | | View PDF | | | | |
| 1 | Foil Feed, Knurled roller pin (wheel side) | 15000-004 | 102954 |  | View PDF | | | | |
| 1 | Foil Feed, Large Pulley | 15000-002 | 100249 | | View PDF | | YES | | |
| 2 | Foil Feed, Mandrel support bar 10 x 15 | 15350-011 | 100460 | | View PDF | | | | |
| 2 | Foil Feed, Rail Franklin, 48 Inch | 15710-003 | 103577 | | View PDF | | YES | | |
| 1 | Foil Feed, Roller, Metal, Knurled, 12"X18", 12"X24" Heater Head | 15310-004 | 103145 | | View PDF | | | | |
| 1 | Foil Feed, Roller, Pressure Assembly, 12X18 12X24 | 15530-000 | 103491 |  | View PDF | | YES | | |
| 1 | Foil Feed, Roller, Rubber, 12"X18", 12"X24" Heater Head | 15324-000 | 102786 | | View PDF | | | | |
| 1 | Foil Feed, Supply Flange Assembly 6" | 15902-000 Supply Assembly 6 Inch | 103188 |  | View PDF | | YES | | |
| 2 | Foil Feed, Take Up Keeper | 15000-001 | 100428 | | View PDF | | | | |
| 1 | Foil Feed, Takeup Assembly 12X18 12X24 | 15440-000 | 103278 | | View PDF | | YES | | |
| 2 | Stripper Bar Assembly 12X18, 12X24, 10 Long | 15942-000 12X18, 12X24, 10 Vertical | 103586 |  | View PDF | | YES | | |
|
|
