| Hot Stamping Machine |
| Foil Feed Systems 6"X8" 6"X12" |
| Foil Feed, 6"X8" 6"X12" No Drive |
| AFM Part Number 103534 |
| Drawing Number 155200 |
 |
| View PDF |
|
| Qty | Description | Drawing Number | AFM Part# | Picture(s) | Drawing(s) | EDrawing(s) | Assembly | Spare | | 1 | Foil Feed, Knurled roller pin (wheel side) | 15000-004 | 102954 |  | View PDF | | | | |
| 1 | Foil Feed, Large Pulley | 15000-002 | 100249 | | View PDF | | YES | | |
| 2 | Foil Feed, Rail, 33" | 15710-002 | 104059 | | View PDF | | YES | | |
| 1 | Foil Feed, Roller Pressure Assembly, 6X8 6X12 | 15520-000 | 103489 | | View PDF | | YES | | |
| 1 | Foil Feed, Roller, Metal, Knurled, 6"X8", 6"X12" Heater Head | 15310-002 | 103143 | | View PDF | | | | |
| 1 | Foil Feed, Roller, Rubber, 6"X8", 6"X12" Heater Head | 15322-000 | 102648 | | View PDF | | | | |
| 2 | Foil Feed, Take Up Keeper | 15000-001 | 100428 | | View PDF | | | | |
| 1 | Foil Feed, Takeup Assembly 6X8 6X12 | 15420-000 | 103276 | | View PDF | | YES | | |

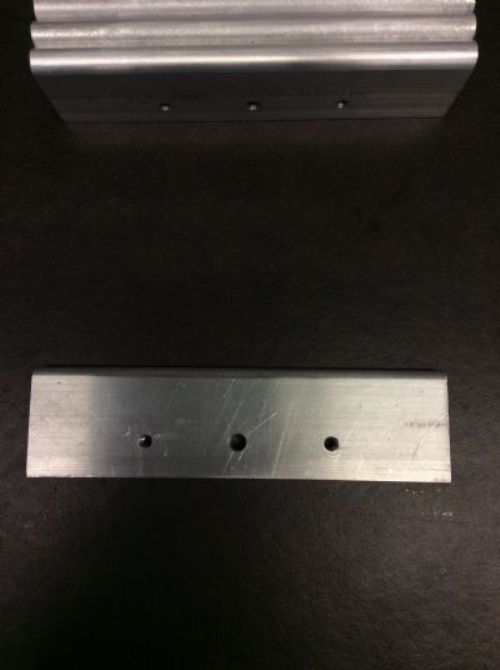

| 1 | Franklin Foil Feed Rail Spacer 6x8 6x12 | 15620-001 | 103663 |  | | | | | |

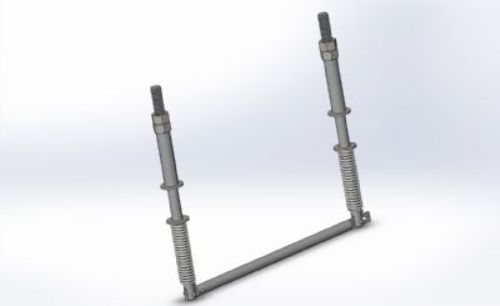

| 2 | Stripper Bar Assembly 6X8, 6X12, 8 Long | 15920-000 6X8 6X12 8 Vertical | 103579 |  | View PDF | | YES | | |
|
|
