| Omron Hot Stamp Control Box Decal
Indexer Setup |

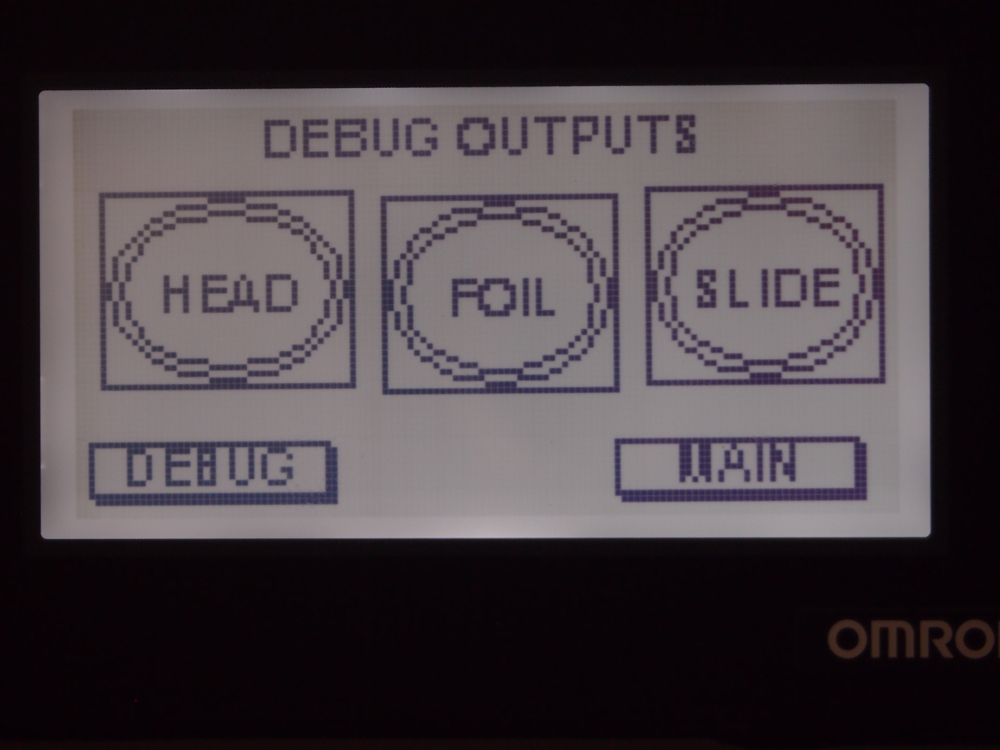

| The Debug Outputs Screen: |
| 1. | Indicator |
|
| Head | Should turn
dark when Head Output is ON |
| Foil | Should turn
dark when Foil Pull Motor is Running |
| Slide | Should
turn dark when Slide Output is ON (If used) |
|
| 2. | Buttons |
|
| Debug | Takes the
Operator to the Mains Debug Screen. |
| Main | Takes
the Operator to the Main Screen. |
|
|
 |
|
