Medical Hot Stamp Machine
Model 10 |
| Users Manual |

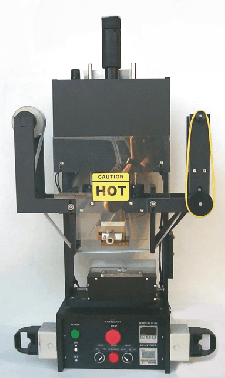

The Mini Hot Stamper Model 10 is designed specifically
for hot stamping small medical parts in a clean room.
The Mini Hot Stamper should be considered for printing
on Luer "Y" and "T" fittings where lot code,
product
code and date codes are required.
Features
|
Small Footprint:
Height 38", Width 24", Depth 12" |
|
Pneumatic System is Designed to Run Dry |
|
All Aluminum Surfaces are Anodized Black |
|
All Hardware is Stainless Steel |
|
Light Weight 60 lbs. |
|
Digital Timer |
|
Digital Temperature Controller with Solid State Relay |
|
Clean Room Ready |
|
Light Touch Palm Buttons |
|
Micrometer Depth Stop |
|
Dovetail Die Holder |
|
Accurate Mechanical Foil Advance |
|
CE Certified |
Options
|
Side to Side Slide |
|
Light Curtain |
|
Numbering Heads |
|
3" X 6" 600 watt Heater Head |
|
|
|
Specifications:
|
|
Power Input: 120 VAC 5 amp 50/60 Hz.
(optional 220 VAC 2.5 amp 50/60 Hz.) |
|
Air Supply: 100
PSIG at 0.5 CFM
Clean Dry Air |
|
Dimensions: Height 38", Width 24", Depth 12" |
|
Weight: 60
lbs. |
|
Temperature Range: 200 to 600°F. |
|
Digital Control with Solid State Relay |
|
Printing Pressure: 50 to 500 lbs. |
|
Printing Time: 0.001 to 9.999 Digital Control |
|
Print Head Size 2" X 4" 350 watt
(optional 3" X 6" 600 watt) |
|
|
|
|
